Graph Legend

This page explains how to interpret the graphs that are generated by doxygen.

Consider the following example:

class Invisible { };

class Truncated : public Invisible { };

/* Class not documented with doxygen comments */
class Undocumented { };

class PublicBase : public Truncated { };

class ProtectedBase { };

class PrivateBase { };

class Used { };

class Inherited : public PublicBase,
                  protected ProtectedBase,
                  private PrivateBase,
                  public Undocumented
{
  private:
    Used *m_usedClass;
};

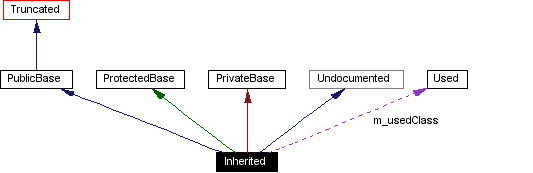

If the MAX_DOT_GRAPH_HEIGHT tag in the configuration file is set to 200 this will result in the following graph:

The boxes in the above graph have the following meaning:

The arrows have the following meaning:
